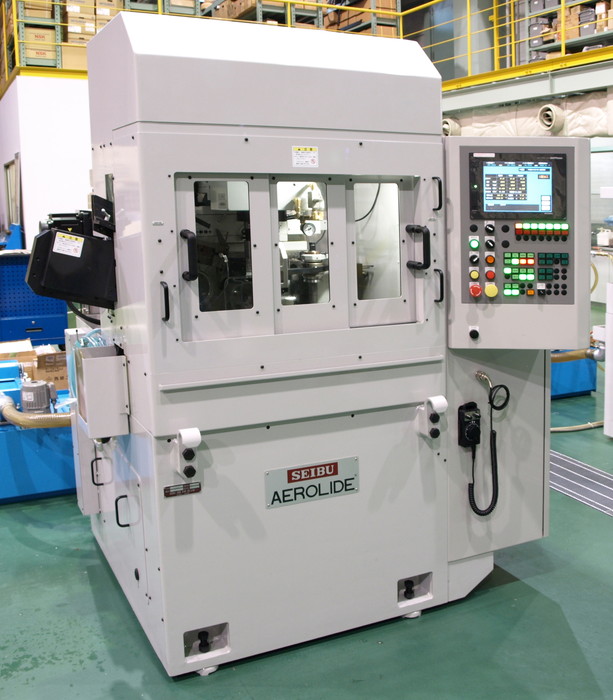

Fully Automatic I.D. Centerless Stone Lapping Machine
Standard Application range :OD 35 - 130 mm x Length 6 - 45 mm x R dimension 3 - 10 mm
STK-200WTB-A
Application
1) Deep Groove Ball Bearing
2) Angular ball bearing
Main Features

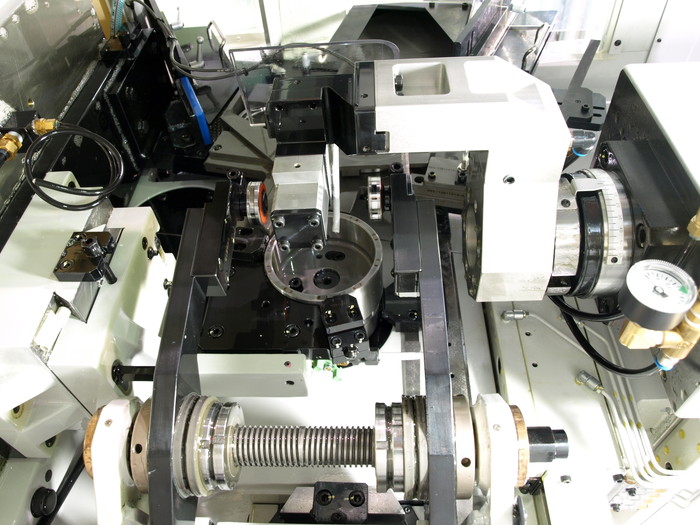

- Centerless stone lapping machine for outer ring raceways of ball bearings
- Servomotor is directly connected to oscillating arm, enabling efficient changeover and condition changes. The stone head oscillating arm moves in smooth, sine-like curves, capable of indexing of precise oscillation angles, enabling high-precision stone lapping of gothic arc grooves.
- Outer diameter shoe centerless support system
Work piece: Ball bearing outer ring
Machine Specifications
| 1) Work piece | |
|---|---|
|
Four-point contact (gothic arc groove) ball bearing & single-row deep groove ball bearing, single & double row angular contact ball bearing, |
|
| 2) Machining range | |
| Cassette loader system | |
| O.D. | 35 - 130 mm |
| Width | 6 - 45 mm |
| R (Curvature) | 3 - 10 mm |
| Swing arm loading system | |
| O.D. | 110 - 170 mm |
| Width | 24 - 40 mm |
| R (Curvature) | 5 - 25 mm |
| 3) Work piece support system | |
| O.D. shoe roller centerless support system | |
| 4) Machining method | |
| Infeed type, Plunge cut | |
| 5) Delivery unit inside M/C system | |
| Cassette loader or swing arm system | |
| 6) Main spindle unit | |
| Main spindle Frequency |
270 - 2,760 rpm Automatic multi-step change-over |
| Main spindle drive motor | Inverter control |
| Front/back/left/right movement unit drive motor | AC servomotor |
| 7) Stone oscillation part | |
| Oscillation unit | |
| Frequency |
Max. 500 fpm (±15°) Automatic multi-step change-over |
| Angle of oscillation | Max. 40°(±20°) |
| Drive Motor | AC servomotor |
| 8) Bore refeerence unit | |
| 9) Pressure roller unit | |
| Hydraulic drive | |
| 10) Stone head part | |
|
One axis one head type Auto slide type stone head, Pneumatic drive 0 - 0.4MPa |
|
| Stone pressurization |
Electropneumatic regulator control, Automatic multi-step change-over |
| 11) Tool in / tool out slide unit | |
| 160 mm | |
| Drive Motor | AC servomotor drive |
| 12) Approaching slide unit | |
| 165 mm | |
| Drive Motor | AC servomotor drive |
| 13) Hydraulic tank unit | |
| Tank capacity | 10 L |
| Pump Motor | 3dia. 0.75kW 4P |
| 14) Centralized lubrication tank unit | |
| Automatic centralized lubrication | |
| 15) Machine size | |
| (W)1,790×(D)1,730×(H)1,925 mm | |
| 16) Machine weight | |
| 3,600 Kg | |
Note : Specifications are subject to change without notice.
